About X-Linker

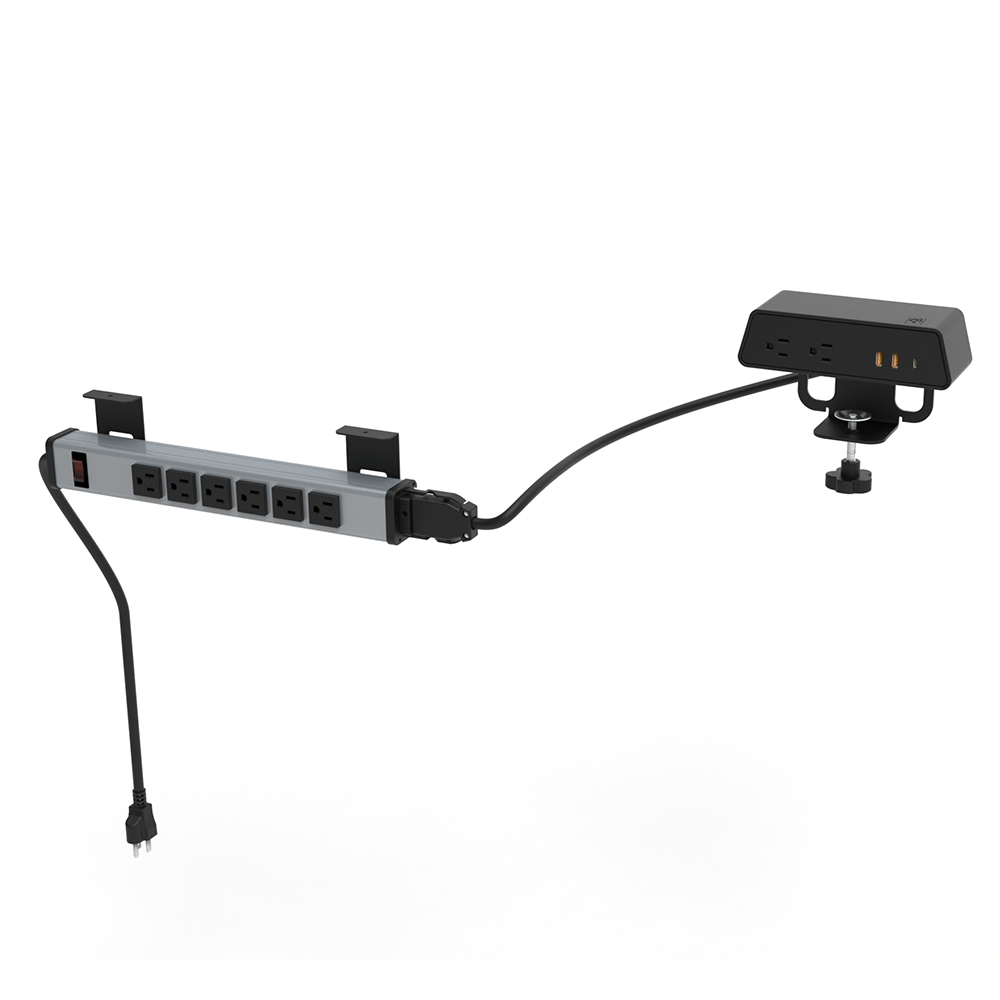

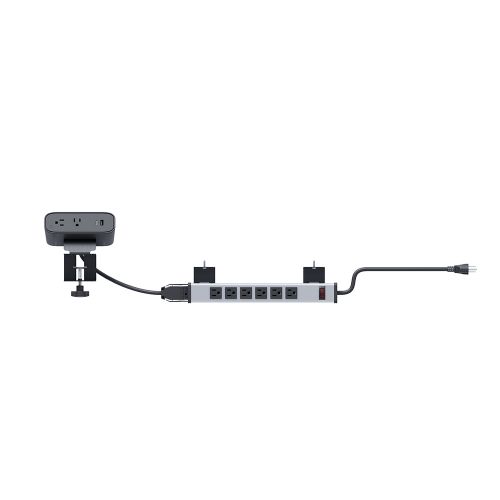

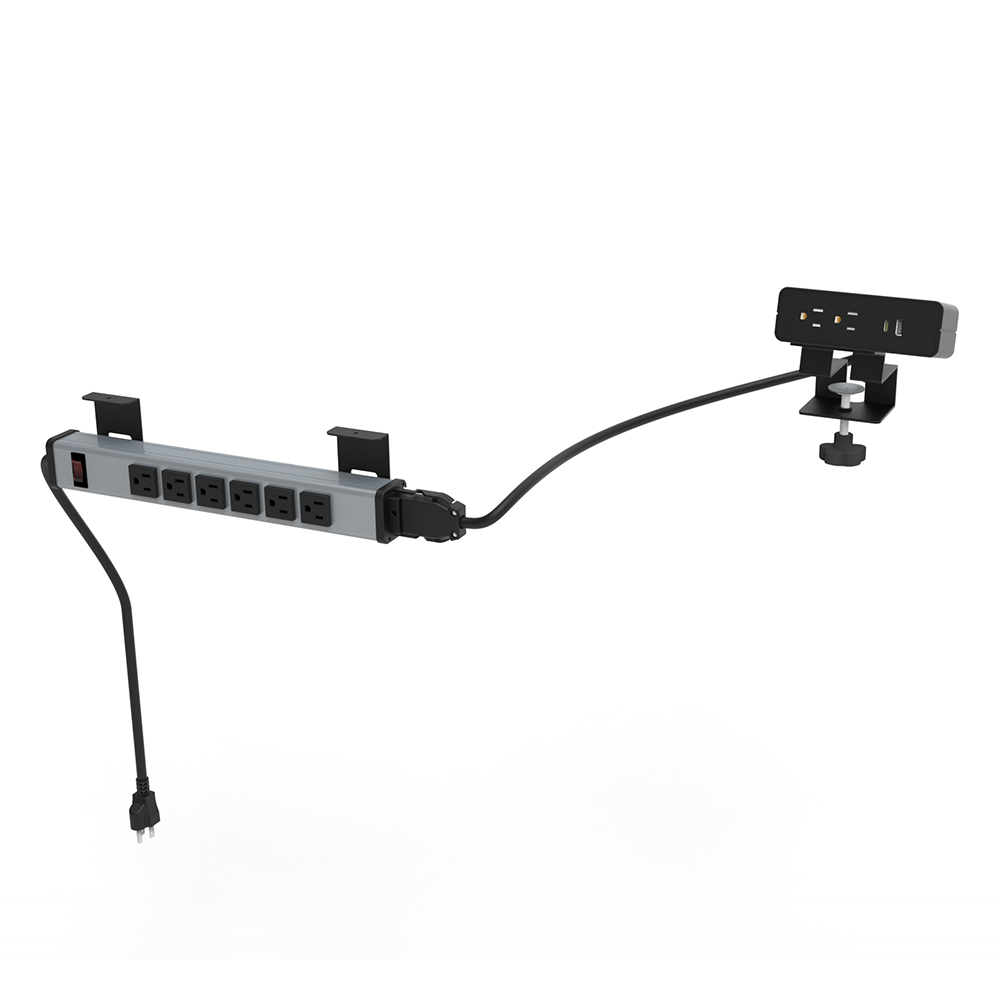

Designed to move with height-adjustable tables, X-linker supplies up to eight power outlets at a time.

This streamlined offering provides 4 or 6 outlets mounted under the work surface paired with various omni power units - offering up to 2 additional power outlets and USB charging ports above the surface.

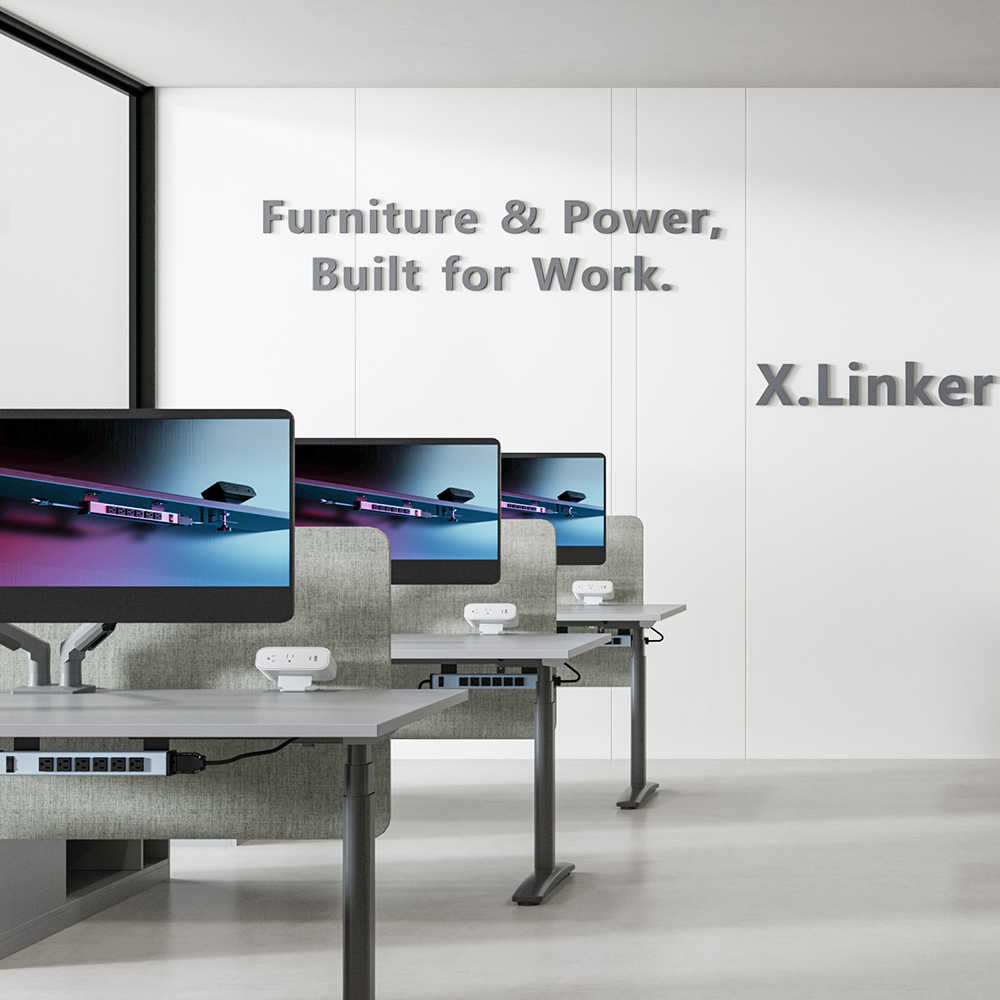

Perfect for powering monitors or providing power at desk height on mobile tables. X-linker is UL 962A Listed. All individual products have already obtained the relevant certifications according to the required standards.

Product Description

2-6 x NEMA 5-15R TR outlets: 120V AC, 60Hz, 15A Max,

Cord Length: 7' (180cm)

Matching socket parameters

Single Type-C PD output: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3.25A, PPS: 3.3-20V⎓3A

Single Type-A QC output: 5V⎓3A, 9V⎓2A, 12V⎓1.5A

Type-A QC and Type-C PD output:

       1) Type-C PD, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A, PPS: 3.3-15V⎓3A,

       2) Type-A QC, 5V⎓3A, 9V⎓2A, 12V⎓1.5A

Omni could offer USB C Ports 30W, 65W and 100W as options.

Package Information

Inner box: 22x21x11cm

Master carton: 108x43x23cm/20pcs

Weight: 27.6kgs

Certification

UL962A, CUL962A

Installation Tips:

Installation is as simple as clamping it to the desk edge and plugging it in. Insert the clip into the desk edge (there is a protective pad to place between the desk and the clip for not to damage your desk). Tighten up the knobs, once you get it super tight, and installation is completed.

Notice:

Do not exceed the total rating or it may cause damage to the unit and fire hazard.

This unit is for indoor use only!

Keep your hands dry at the same time. Don't let the liquid run into the socket.
