Introducing Smart+ Under-surface — Designed to give you the robust construction you need with an under-surface product, with all of the configurability and intentional design you have come to expect from the Smart series.
About Smart+
Introducing Smart+ Under-surface — Designed to give you the robust construction you need with an under-surface product, with all of the configurability and intentional design you have come to expect from the Smart series.
5 IN 1 Desk Power Socket: This desk recessed power strip with 2 AC outlets, 1 USB A charging ports, and 2 USB C Power Delivery port. Every single USB port can intelligently identify your device and seeks to maximize its charging speed.
Material: The housing is made of sufficiently thick flame-retardant ABS material, while the bracket and frame are made of Aluminum, the overall structure is sturdy.
1.8M Extension Lead: AC socket Output: 125VAC, 60Hz, 15A Max omni desktop power extension plug socket matched with 1.8M cable gives you the flexibility to get easy access to distant sockets, which meets most usage scenarios.
Product Description
2xNEMA 5-15R outlets, 125VAC, 60Hz, 15A Max
1 USB-A charger port 2 USB-C charger ports can charge laptop up to 65 Watts
USB Ports
USB-A: 5V⎓3A, 9V⎓2A, 12V⎓1.5, 18W Max
USB-C1: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3.25A;
PPS (3.3-11V⎓4.05A, 3.3-16V⎓3A, 65W Max);
PD3.0, APPLE2.4A, DCP1.5A, QC2.0/3.0, AFC
USB-C2: 5V⎓3A, 9V⎓2.22A, 12V⎓1.67A, 20W Max
Multi-port Use
USB-C1 + USB-C2:
USB-C1 Max 45W (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓2.67A, 20V⎓2.25A); USB-C2 Max 20W (5V⎓3A, 9V⎓2.22A, 12V⎓1.67A)
USB-C1 + USB-A: USB-C1 Max 45W (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓2.67A, 20V⎓2.25A); USB-A Max 18W (5V⎓3A, 9V⎓2.A, 12V⎓1.5, 18W Max)
USB-C2 + USB-A: Both share 15W
USB-C1 + USB-C2 + USB-A: USB-C1 Max 45W (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓2.67A, 20V⎓2.25A);
USB-C2 & USB-A share 15W
Package Information
Inner box: 22x22x11cm
Master carton: 108x43x23cm/20pcs
Weight: 25kgs
Certification
UL962A, UL1310
Installation Tips

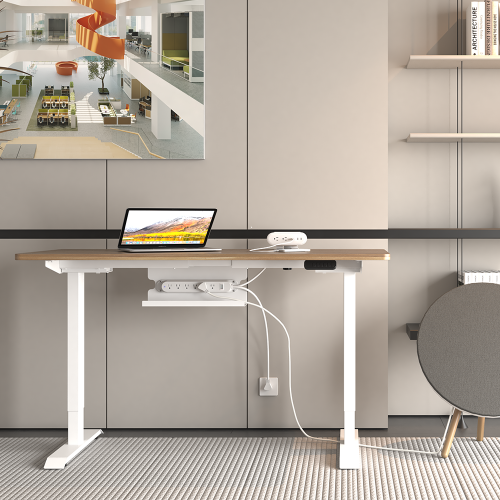

Installation is as simple as clamping it to the desk edge and plugging it in. Insert the clip into the desk edge (there is a protective pad to place between the desk and the clip for not to damage your desk). Tighten up the knobs, once you get it super tight, and installation is completed.
Notice
1. Do not exceed the total rating or it may cause damage to the unit and fire hazard.
2. This unit is for indoor use only!
3. Keep your hands dry at the same time. Don’t let the liquid run into the socket.
