OME011

About Triones

The Triones Series expands the Triones Family line by creating a fresh, modern look with a smooth finish. With the side metal bracket removed, the full beauty of the design comes to life.

4 IN 1 Desk Power Socket omni desk power socket comes with NEMA 5-15R outlets, USB-C 65w ports. It can quickly charge your mobile phone, tablet computer and other devices.

Fast Charging USB-C Port: Built-in fast charging 1 USB-C Ports and 1 USB-A ports, max output power up to a total 65W. Desktop power strip can provide efficient charging. Perfect desk accessories for power supply.

1.8M Extension Lead: AC socket Output: 120V AC, 60Hz, 15A Max, omni desktop power extension plug socket matched with 1.8M cable with a low-profile US plug gives you the flexibility to get easy access to distant sockets, which meets most usage scenarios.

Superior Security Desktop power strip advanced multifunctional protection technology to protect your electronic devices and provides protection against electrical short circuits, overheating, overcharging, overcurrent, and overvoltage.

Easy Installation Take out the desktop power strip and mount it on the desk edge. No screws are required, No need to punch holes in the table. The max desk edge is 1.57" is allowed.

Product Description

2xNEMA 5-15R TR outlets: 120V AC, 60Hz, 15A Max,

USB Ports

Output Method No.1

Single Type-C PD output: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3.25A, PPS: 3.3-20V⎓3A

Output Method No.2

Single Type-A QC output: 5V⎓3A, 9V⎓2A, 12V⎓1.5A

Output Method No.3

Type-A QC and Type-C PD output:

       1) Type-C PD, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A, PPS: 3.3-15V⎓3A,

       2) Type-A QC, 5V⎓3A, 9V⎓2A, 12V⎓1.5A

It can automatically identify the highest power output according to the wireless charging protocol of the charged device.

Cord Length: 5'8" (172.7cm)

Omni could offer USB C Ports 30W and 65W as options.

Package Information

Inner box: 22x21x11cm

Master carton: 108x43x23cm/20pcs

Weight: 27.6kgs

Certification

UL962A, CUL962A

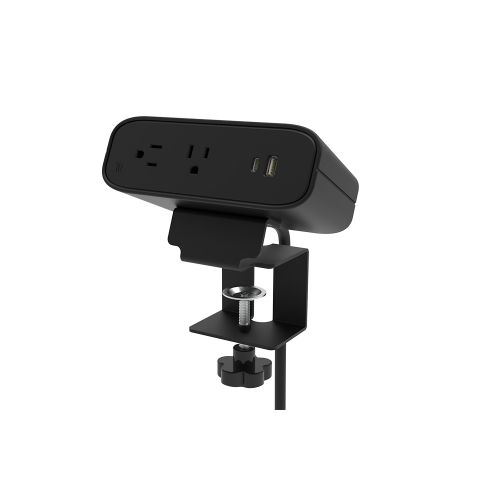

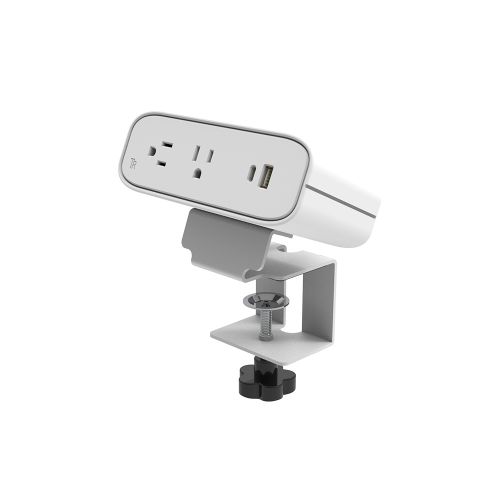

Installation Tips:

Installation is as simple as clamping it to the desk edge and plugging it in. Insert the clip into the desk edge (there is a protective pad to place between the desk and the clip for not to damage your desk). Tighten up the knobs, once you get it super tight, and installation is completed.

Notice:

Do not exceed the total rating or it may cause damage to the unit and fire hazard.

This unit is for indoor use only!

Keep your hands dry at the same time. Don't let the liquid run into the socket.
